Material number 265814

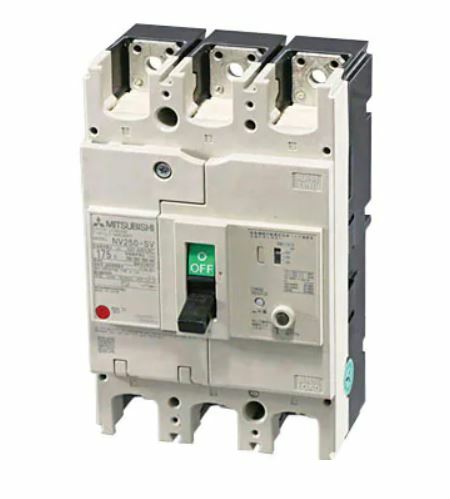

Earth-leakage Breaker 3pole; In=250A; 100/200/500mA; Icu/Ics=36/36kA at AC400V
| Series | WS-V SERIES - ELCB |
|---|---|
| Type | NV-S TYPE (STANDARD CLASS) |
| Rated Current (A) | 250 |
| Current Type | AC |
| Number of Poles | 3 |
| Rated Voltage (V) | 100-440 |
| Rated Current Sensibility (mA) | 100/200/500 |
| Depth (mm) | 92 |
|---|---|
| Weight (kg) | 1,9 |
| Width (mm) | 105 |
| Height (mm) | 165 |
| CE | COMPLIANT |
|---|
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 97 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 0 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| REACH Limit Exceeded | NO |
|---|---|
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2C |
| Dangerous Goods Identifier | NO |
