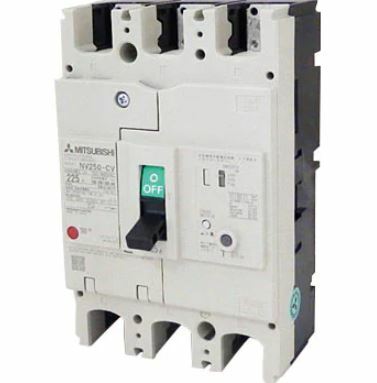

    265794-NV250-CV 3P 200A 2-440V 1.2.500MA JIEN C

    265794 - NV250-CV 3P 200A 2-440V 1.2.500MA JIEN C

    Material number 265794

    Earth-leakage Breaker 3pole; In=200A; 100/200/500mA; Icu/Ics=25/19kA at AC400V

    Request for Quote Add to List
    FA-MCCB: EARTH LEAKAGE CIRCUIT BREAKER
    Breaking Capacity at 400V (kA) 25/19
    Series WS-V SERIES - ELCB
    Type NV-C TYPE (ECONOMY CLASS)
    Rated Current (A) 200
    Current Type AC
    Number of Poles 3
    Rated Voltage (V) 2-440
    Rated Current Sensibility (mA) 100/200/500
    Max. Operating Time (s) 0,04
    PRODUCT DIMENSIONS & WEIGHT
    Depth (mm) 92
    Weight (kg) 1,7
    Width (mm) 105
    Height (mm) 165
    CONFORMITY
    CE COMPLIANT
    Shipping Approvals NON-COMPLIANT
    EAC NON-COMPLIANT
    UL/cUL NON-COMPLIANT
    PRODUCT PACKAGING
    Aluminum (g) 0
    Others (g) 0
    Styrofoam (g) 0
    Cardboard (g) 97
    Steel (g) 0
    Glass (g) 0
    Other plastic (g) 0
    Wood (g) 0
    Other paper (g) 0
    ENVIRONMENTAL
    REACH Limit Exceeded YES
    REACH Substance CAS Number 7439-92-1, 3896-11-5, 119344-86-4
    RoHS Compliance COMPLIANT
    Dangerous Goods Class NO
    WEEE B2C
    Dangerous Goods Identifier NO
