Material number 265626

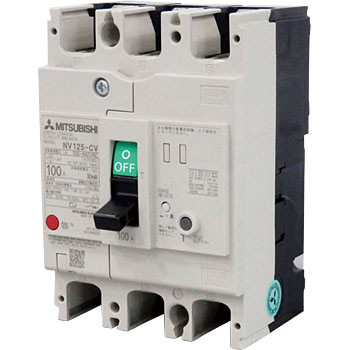

Earth-leakage Breaker 3pole; In=125A; 100/200/500mA; Icu/Ics=10/5kA at AC400V
| Breaking Capacity at 400V (kA) | 10/5 |
|---|---|
| Series | WS-V SERIES - ELCB |
| Type | NV-C TYPE (ECONOMY CLASS) |
| Frame Size | 125 |
| Rated Current (A) | 125 |
| Current Type | AC |
| Number of Poles | 3 |
| Rated Voltage (V) | 2-440 |
| Rated Current Sensibility (mA) | 100/200/500 |
| Max. Operating Time (s) | 0,04 |
| Pulsating Current Sensibility | A (HARMONIC SURGE READY) |
| Compliant with Standard(s) | EN 60947-2, IEC 60947-2 |
| Cycles with Rated Current | 6000 |
| Cycles without Rated Current | 10000 |
| Automatic Tripping Device | THERMAL-MAGNETIC |
| Depth (mm) | 90 |
|---|---|
| Weight (kg) | 1 |
| Width (mm) | 90 |
| Height (mm) | 130 |
| CE | COMPLIANT |
|---|---|
| Shipping Approvals | NON-COMPLIANT |
| EAC | NON-COMPLIANT |
| UL/cUL | NON-COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 69 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 0 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 7439-92-1 |
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2C |
| Dangerous Goods Identifier | NO |
