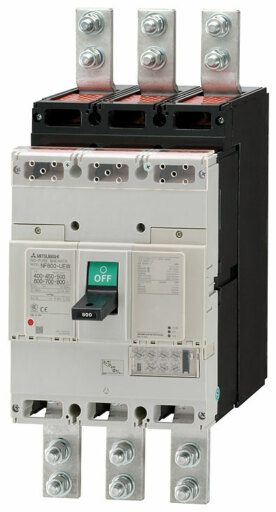

Material number 204802
Circuit breaker 3pole. Ir = 400 - 800A; Icu = Ics = 200kA at AC 440V
| Series | WS SERIES - MCCB |
|---|---|
| Type | NF-U (ULTRA CURRENT-LIMITING) |
| Frame Size | 800 |
| Rated Current (A) | 800 |
| Current Type | AC |
| Number of Poles | 3 |
| Rated Voltage (V) | 690 |
| Breaking Capacity at 400V (kA) | 200/200 |
| Compliant with Standard(s) | EN 60947-2, IEC 60947-2 |
| Cycles with Rated Current | 500 |
| Cycles without Rated Current | 4000 |
| Automatic Tripping Device | ELECTRONIC |
| Depth (mm) | 252 |
|---|---|
| Weight (kg) | 27,6 |
| Width (mm) | 210 |
| Height (mm) | 322 |
| CE | COMPLIANT |
|---|---|
| Shipping Approvals | LR, BV, ABS |
| EAC | NON-COMPLIANT |
| UL/cUL | NON-COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 2460 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 0 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 71868-10-5, 7439-92-1 |
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
