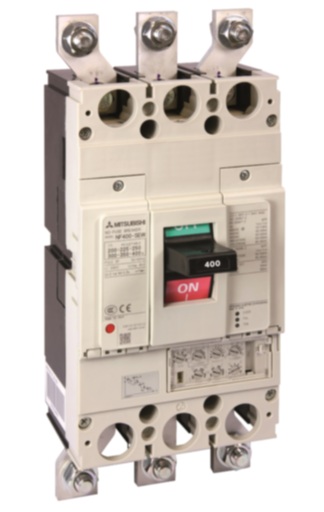

Material number 204793
Circuit breaker 3pole. Ir = 300 - 630A; Icu / Ics = 125 / 63kA at AC 440V
| Series | WS SERIES - MCCB |
|---|---|
| Type | NF-R TYPE (CURRENT-LIMITING) |
| Frame Size | 630 |
| Rated Current (A) | 630 |
| Current Type | AC |
| Number of Poles | 3 |
| Rated Voltage (V) | 690 |
| Breaking Capacity at 400V (kA) | 125/63 |
| Compliant with Standard(s) | IEC 60947-2, EN 60947-2 |
| Cycles with Rated Current | 1000 |
| Cycles without Rated Current | 6000 |
| Automatic Tripping Device | ELECTRONIC |
| Depth (mm) | 155 |
|---|---|
| Weight (kg) | 6 |
| Width (mm) | 140 |
| Height (mm) | 257 |
| CE | COMPLIANT |
|---|---|
| Shipping Approvals | LR, BV, ABS |
| EAC | NON-COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 421 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 0 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 7439-92-1, 540-97-6, 541-02-6, 556-67-2, 71868-10-5, 119344-86-4 |
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
