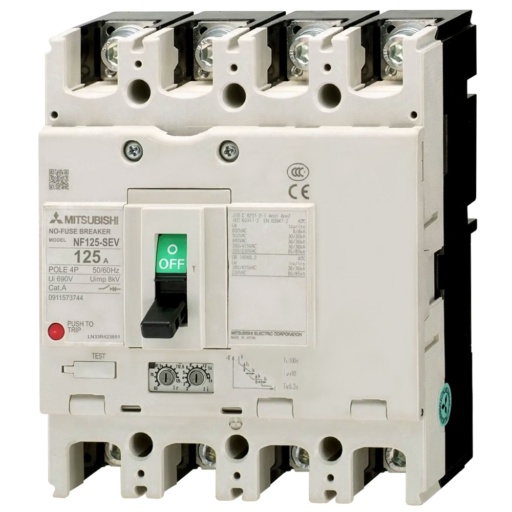

Material number 255029
Circuit breaker 4pole. Ir = 63 - 125A; Icu = Ics = 36kA at AC 440V
| Series | WS-V SERIES - MCCB |
|---|---|
| Type | NF-S TYPE (STANDARD CLASS) |
| Frame Size | 125 |
| Rated Current (A) | 63-125 |
| Current Type | AC |
| Number of Poles | 4 |
| Rated Voltage (V) | 690 |
| Breaking Capacity at 400V (kA) | 36/36 |
| Compliant with Standard(s) | EN 60947-2, IEC 60947-2 |
| Cycles with Rated Current | 10000 |
| Cycles without Rated Current | 25000 |
| Automatic Tripping Device | ELECTRONIC |
| Depth (mm) | 92 |
|---|---|
| Weight (kg) | 2,2 |
| Width (mm) | 140 |
| Height (mm) | 165 |
| CE | COMPLIANT |
|---|---|
| Shipping Approvals | NON-COMPLIANT |
| EAC | NON-COMPLIANT |
| UL/cUL | NON-COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 88 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 0 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 7439-92-1, 12626-81-2, 3896-11-5, 75980-60-8, 119344-86-4 |
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
