Material number 577243

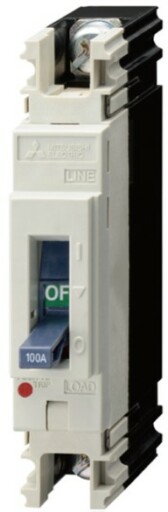

Circuit breaker 1pole. Ir = 20A; Icu = Ics = 200kA at AC 440V
| Series | WS-V SERIES - MCCB |
|---|---|
| Type | NF-SX TYPE |
| Frame Size | 100 |
| Rated Current (A) | 20 |
| Number of Poles | 1 |
| Compliant with Standard(s) | IEC 60947-2, EN 60947-2 |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| UL/cUL | NON-COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 45,00 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 0 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| RoHS Compliance | COMPLIANT |
|---|---|
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
