Material number 720340

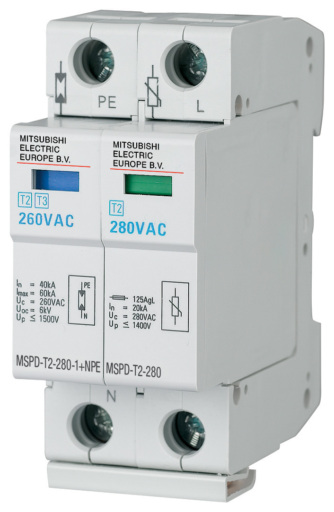

Surge protection device; Single phase supply / 1+1 connection
| Series | MODULAR DIN RAIL COMPONENTS |
|---|---|
| Type | SPD |
| Rated Voltage (V) | 240 |
| Current Type | AC |
| Number of Poles | 1+N |
| Protection Class | CLASS T2 |
| Compliant with Standard(s) | EN 61643-11, IEC 61643-11 |
| Depth (mm) | 85 |
|---|---|
| Weight (kg) | 0,21 |
| Width (mm) | 17,5 |
| Height (mm) | 67 |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 0 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 0 |
| Wood (g) | 0 |
| Other paper (g) | 14,00 |
| RoHS Compliance | COMPLIANT |
|---|---|
| Dangerous Goods Class | NO |
