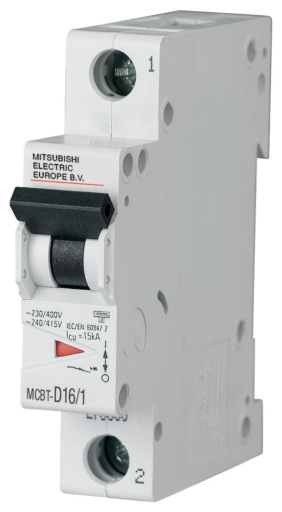

Material number 721067
16A; 1-pole; D-curve MCB; Icu = 15kA EN60898 = 25kA EN60947-2
| Series | MODULAR DIN RAIL COMPONENTS |
|---|---|
| Type | MCBT (D-CURVE) |
| Rated Current (A) | 16 |
| Number of Poles | 1 |
| Instantaneous Tripping | TYPE D |
| Breaking Capacity at 415V (kA) | IEC 60898: 10KA, IEC 60947-2: 15KA |
| Compliant with Standard(s) | CSA-C22.2, EN 45545-2, IEC 61373, IEC/EN 60898, IEC/EN 60947-2 |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| RoHS Compliance | COMPLIANT |
|---|---|
| Dangerous Goods Class | NO |
