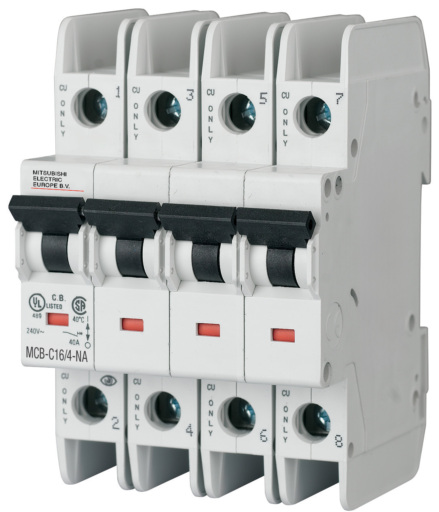

Material number 721621
13A; 4-pole; C-curve MCB; Icu = 10kA UL 489 = 15kA EN60947-2
| Series | MODULAR DIN RAIL COMPONENTS |
|---|---|
| Type | C-CURVE MCBS UL |
| Rated Current (A) | 13 |
| Number of Poles | 4 |
| Instantaneous Tripping | TYPE C |
| Breaking Capacity at 415V (kA) | IEC 60898: 10KA, IEC 60947-2: 10KA |
| Compliant with Standard(s) | CSA-C22.2, EN 45545-2, IEC 61373, IEC/EN 60898, IEC/EN 60947-2 |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| RoHS Compliance | COMPLIANT |
|---|---|
| Dangerous Goods Class | NO |
