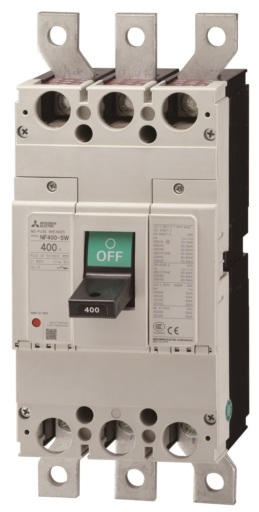

Material number 204778
Switch disconnector 3pole. In max = 400A
| Series | WS SERIES - ISOLATION SWITCH |
|---|---|
| Type | DISCONNECTOR |
| Frame Size | 400 |
| Rated Current (A) | 400 |
| Current Type | AC/DC |
| Number of Poles | 3 |
| Rated Voltage (V) | 690 |
| Depth (mm) | 155 |
|---|---|
| Weight (kg) | 5,7 |
| Width (mm) | 140 |
| Height (mm) | 257 |
| CE | COMPLIANT |
|---|---|
| Shipping Approvals | BV, CCS |
| EAC | NON-COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 421 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 0 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 119344-86-4 |
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
