Material number 293603

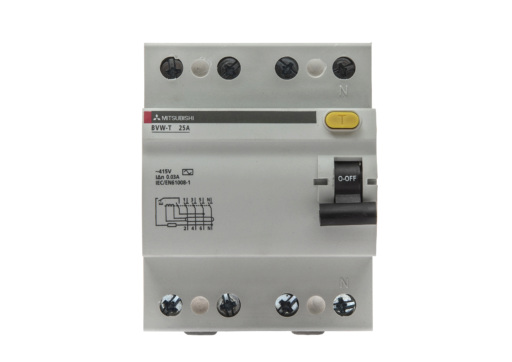

RCCB 4-pole, Rated current 25A, AC 415V, 30mA Type AC
| Series | WS-V SERIES - RCCB |
|---|---|
| Type | BVW-T EARTH CIRCUIT BREAKER |
| Rated Current (A) | 25 |
| Rated Voltage (V) | 415 |
| Current Type | AC |
| Number of Poles | 3+N |
| Cycles with Rated Current | 2000 |
| Cycles without Rated Current | 4000 |
| Rated Current Sensibility (mA) | 30 |
| Pulsating Current Sensibility | TYPE AC |
| Compliant with Standard(s) | IEC 61008-1 |
| Depth (mm) | 74 |
|---|---|
| Weight (kg) | 0,44 |
| Width (mm) | 72 |
| Height (mm) | 90 |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 65 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 0 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| REACH Limit Exceeded | NO |
|---|---|
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2C |
| Dangerous Goods Identifier | NO |
