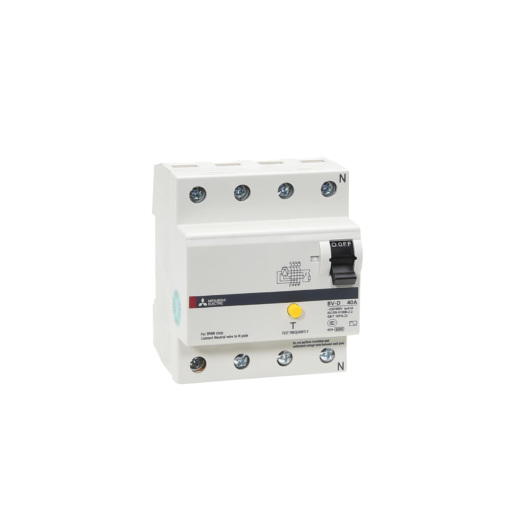

Material number 247619
RCCB; 4poles; Rated Current: 25A; Current Sensitivity: 300MA
| Series | WS-V SERIES - RCCB |
|---|---|
| Type | BV-D EARTH CIRCUIT BREAKER |
| Rated Current (A) | 25 |
| Rated Voltage (V) | 230/400 |
| Current Type | AC |
| Number of Poles | 3+N |
| Cycles with Rated Current | 8000 |
| Cycles without Rated Current | 8000 |
| Rated Current Sensibility (mA) | 300 |
| Pulsating Current Sensibility | TYPE AC |
| Compliant with Standard(s) | IEC 61008-2-2 |
| Depth (mm) | 70 |
|---|---|
| Weight (kg) | 0,35 |
| Width (mm) | 72 |
| Height (mm) | 85 |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0,06 |
| Cardboard (g) | 47,40 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 0,06 |
| Wood (g) | 8,89 |
| Other paper (g) | 0,11 |
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 1306-19-0, 7439-92-1 |
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2C |
| Dangerous Goods Identifier | NO |
