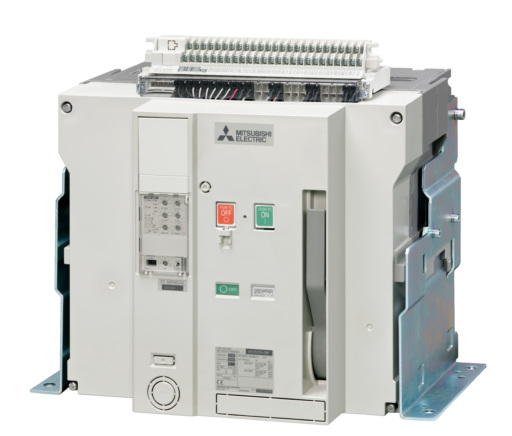

Material number 193932
Switch-disconnector; In max=2500A; Icw (1s) = 75kA; 5a5b
| Series | AE-SW SERIES |
|---|---|
| Type | FIXED TYPE |
| Frame Size | 2500 |
| Rated Voltage (V) | 690 |
| Number of Poles | 4 |
| Rated Current (A) | 2500 |
| Current Type | AC |
| Current Range Ir (A) | 1250-2500 |
| Breaking Capacity at 500V (kA) | 85 |
| Compliant with Standard(s) | EN60947-2, JIS C 8201-2-1, IEC60947-2 |
| Cycles with Rated Current | 1500 |
| Cycles without Rated Current | 20000 |
| No of Auxiliary Contacts NO | 5 |
| No of Auxiliary Contacts NC | 5 |
| Internal Power Supply (V) | 100-240 AC 100-125 DC |
| Power consumption (W) | 50 |
| Automatic Tripping Device | ELECTRONIC |
| Depth (mm) | 290 |
|---|---|
| Weight (kg) | 73 |
| Width (mm) | 605 |
| Height (mm) | 410 |
| CE | COMPLIANT |
|---|---|
| Shipping Approvals | ABS, BV, CCS, DNV-GL, LR, NK |
| EAC | NON-COMPLIANT |
| UL/cUL | NON-COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 5000 |
| Steel (g) | 348 |
| Glass (g) | 0 |
| Other plastic (g) | 0 |
| Wood (g) | 9800 |
| Other paper (g) | 0 |
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 25154-52-3, 140-66-9, 7439-92-1, 10141-05-6 |
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
