Explore Mitsubishi Electric Products

    414698-MI3321G-W

    414698 - MI3321G-W

    Material number 414698

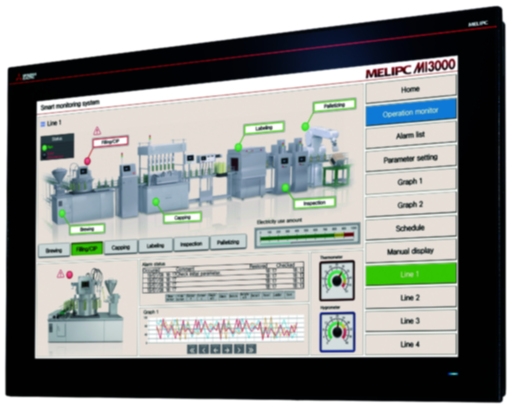

    MELIPC MI3000;Win10IoT;PCAP;DC;21.5"Full HD;16,77M colors;RS-232/422/485;USB;Eth

    Request for Quote Add to List
    FA-HMI: HUMAN MACHINE INTERFACE
    Series MELIPC MI3000
    Type INDUSTRIAL PANEL PC
    Display TFT
    Display Colour 16 MLN
    Display Size (Inch) 21,5
    Resolution (Pixels) 1920X1080
    Power Supply (V) 24
    Current Type DC
    Protection Class IP66
    Internal Memory Capacity (MB) 65536
    Memory Card Slot SATA SSD X 1 INTERFACE
    USB 4
    Ethernet Port 3
    RS-232 2
    RS-422/485 1
    RS-422 1
    Slot for Optional Cards YES
    PRODUCT DIMENSIONS & WEIGHT
    Depth (mm) 88,8
    Weight (kg) 9,8
    Width (mm) 558,4
    Height (mm) 349,8
    CONFORMITY
    CE COMPLIANT
    EAC NON-COMPLIANT
    PRODUCT PACKAGING
    Aluminum (g) 0
    Others (g) 0
    Styrofoam (g) 0
    Cardboard (g) 980
    Steel (g) 0
    Glass (g) 0
    Other plastic (g) 140
    Wood (g) 0
    Other paper (g) 0
    ENVIRONMENTAL
    REACH Limit Exceeded NO
    RoHS Compliance COMPLIANT
    Dangerous Goods Class NO
    WEEE B2B
    Dangerous Goods Identifier NO
