Material number 410443

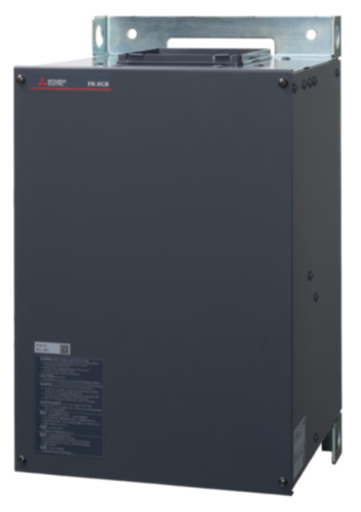

Reactor box-type 22 kW for FR-XC-H22K-60PWM;400V;Harmonic suppression mode
| Series | REGENERATIVE CONVERTER |
|---|---|
| Type | FR-XC BOX-TYPE REACTOR |
| Protection Class | IP20 |
| Depth (mm) | 275 |
|---|---|
| Weight (kg) | 26,9 |
| Width (mm) | 265 |
| Height (mm) | 440 |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 2900 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 20 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 108-78-1, 7439-92-1, 119313-12-1, 3147-75-9 |
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
