    273308-FR-HEL-H160K

    273308 - FR-HEL-H160K

    Material number 273308

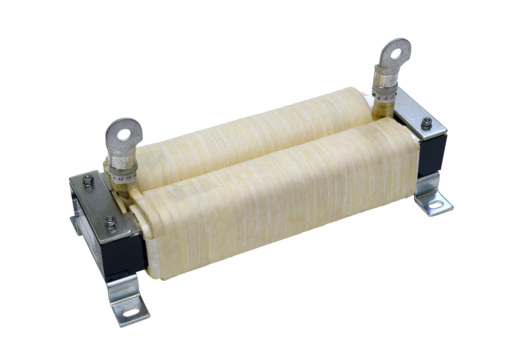

    DC Link choke for 400V Inverter with 160kW Motor

    Request for Quote Add to List
    FA-INVERTER: CHOKE
    Type DC LINK CHOKE
    Applicable Inverter FR-A800, FR-F800
    Rated Voltage (V) 400
    Current Type DC
    Phases 3
    Rated Capacity (kW) 160
    Power Loss (W) 170
    Protection Class IP00
    PRODUCT DIMENSIONS & WEIGHT
    Depth (mm) 205
    Weight (kg) 28
    Width (mm) 175
    Height (mm) 405
    CONFORMITY
    CE COMPLIANT
    EAC NON-COMPLIANT
    UL/cUL COMPLIANT
    UKCA COMPLIANT
    PRODUCT PACKAGING
    Aluminum (g) 0
    Others (g) 0
    Styrofoam (g) 0
    Cardboard (g) 2100
    Steel (g) 0
    Glass (g) 0
    Other plastic (g) 20
    Wood (g) 0
    Other paper (g) 0
    ENVIRONMENTAL
    REACH Limit Exceeded YES
    REACH Substance CAS Number 540-97-6, 541-02-6, 556-67-2
    RoHS Compliance COMPLIANT
    Dangerous Goods Class NO
    WEEE B2B
    Dangerous Goods Identifier NO
