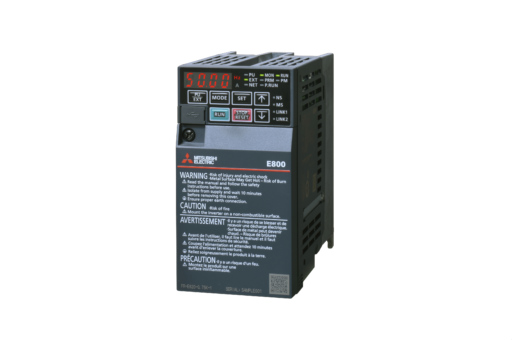

Material number 504760
Inverter; Pn:0,4kW; 1x200-240V; In max: 3A; (0,4kW;3A); PROFINET;SIL3; IP20
| Series | FR-E800 SERIES |
|---|---|
| Type | FR-E800-ETH SAFETY CONTROL |
| Minimum Rated Voltage (V) | 200 |
| Min. Permissible Voltage (V) | 170 |
| Maximum Rated Voltage (V) | 240 |
| Max. Permissible Voltage (V) | 264 |
| Current Type | AC |
| Phases | 3 |
| Rated Output Current ND (A) | 3 |
| Rated Motor Capacity ND (kW) | 0,4 |
| Frequency Range (Hz) | 0,2–590 |
| Control Method | V/F CONTROL, REAL SENSORLESS VECTOR CONTROL, MAGNETIC FLUX VECTOR CONTROL, PM SENSORLESS VECTOR CONTROL |
| Motor Type | INDUCTION MOTOR, PM MOTOR |
| Brake Chopper ED (%) | 30 |
| Integrated EMC Filter | NO |
| Safe Torque Off (STO) | YES |
| Regenerative (4Q) | NO |
| Integrated DC Choke | NO |
| Display | BUILT-IN |
| Display Type | 4 DIGITS LED |
| PLC Function | YES |
| Program Memory | 2K |
| Program Memory Unit | STEPS |
| Integrated Digital Inputs | 0 |
| Digital Outputs (Transistor) | 0 |
| Digital Outputs (Relay) | 1 |
| Integrated Analogue Inputs | 2 |
| Integrated Analogue Outputs | 0 |
| IO Type of Terminal Block | SPRING CLAMP |
| Expandable | YES |
| RS-485 | NO |
| USB | 1 (MINI B) |
| Ethernet Port | 2 |
| Built-In Network | PROFINET, MODBUS/TCP, CC-LINK IE TSN, CC-LINK IE FIELD BASIC |
| Leakage Current (mA) | 1,2 |
| Power Loss ND (W) | 33 |
| Protection Class | IP20 |
| Depth (mm) | 142,5 |
|---|---|
| Weight (kg) | 0,8 |
| Width (mm) | 68 |
| Height (mm) | 128 |
| CE | COMPLIANT |
|---|---|
| EAC | COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 168 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 10 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| RoHS Compliance | COMPLIANT |
|---|---|
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
