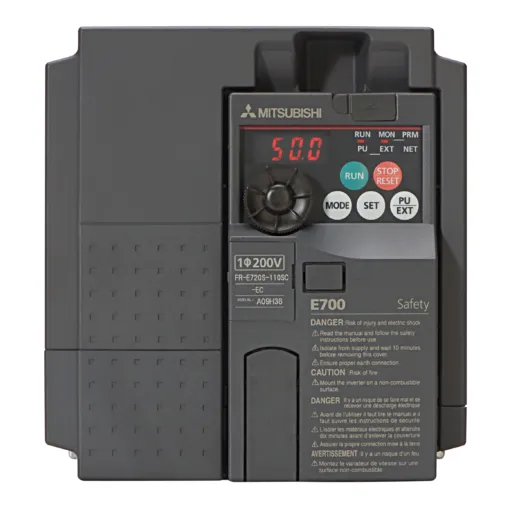

Material number 234800
Inverter; Rated Power: 2,2kW; 1x200-240V; Rated Current: 11A; IP20
| Series | FR-E700 SERIES |
|---|---|
| Type | FR-E700 STANDARD INVERTER |
| Minimum Rated Voltage (V) | 200 |
| Min. Permissible Voltage (V) | 170 |
| Maximum Rated Voltage (V) | 240 |
| Max. Permissible Voltage (V) | 264 |
| Current Type | AC |
| Phases | 1 |
| Rated Output Current ND (A) | 11 |
| Rated Motor Capacity ND (kW) | 2,2 |
| Control Method | V/F CONTROL, MAGNETIC FLUX VECTOR CONTROL |
| Motor Type | INDUCTION MOTOR |
| Brake Chopper ED (%) | 30 |
| Integrated EMC Filter | NO |
| Safe Torque Off (STO) | YES |
| Regenerative (4Q) | NO |
| Integrated DC Choke | NO |
| Display | BUILT-IN |
| Display Type | 3 DIGITS LED |
| PLC Function | NO |
| Integrated Digital Inputs | 6 |
| Digital Outputs (Transistor) | 2 |
| Digital Outputs (Relay) | 1 |
| Integrated Analogue Inputs | 2 |
| Integrated Analogue Outputs | 1 |
| IO Type of Terminal Block | SPRING CLAMP |
| Expandable | YES |
| RS-485 | 1 |
| USB | 1 |
| Built-In Network | MODBUS-RTU |
| Leakage Current (mA) | 1 |
| Power Loss ND (W) | 115 |
| Standby Power Consumption (W) | 6,4 |
| Protection Class | IP20 |
| CE | COMPLIANT |
|---|---|
| UL/cUL | COMPLIANT |
| EAC | COMPLIANT |
| UKCA | COMPLIANT |
| Width (mm) | 140 |
|---|---|
| Height (mm) | 150 |
| Depth (mm) | 161,5 |
| Weight (kg) | 2 |
| Discontinued (EOL) | 09.12.2022 |
|---|---|
| Last Time Buy (LTB) | 01.03.2023 |
| End of Service (EOS) | 01.03.2030 |
| Predecessor | 217898 |
| Successor | 504751 |
| Serial No. on the Box | QR1 |
| Selling Status | Standard |
|---|
| Cardboard (g) | 443,5 |
|---|---|
| Other paper (g) | 0 |
| Aluminum (g) | 0 |
| Steel (g) | 0 |
| Styrofoam (g) | 0 |
| Other plastic (g) | 2,2 |
| Wood (g) | 0 |
| Glass (g) | 0 |
| Others (g) | 0 |
| REACH Limit Exceeded | NO |
|---|---|
| Dangerous Goods Class | NO |
| Dangerous Goods Identifier | NO |
| RoHS Compliance | COMPLIANT |
| WEEE | B2B |
