Material number 747984

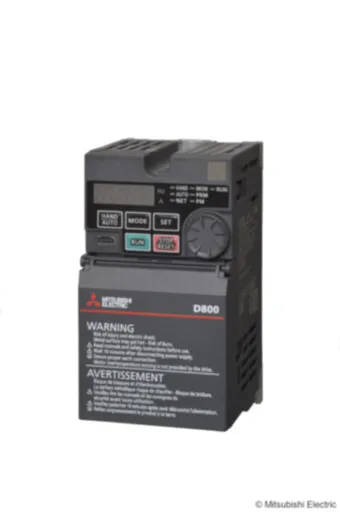

Inverter; 0.1kW; 200V class; Single-Phase Input; 0.8A; PROFINET; Coated
| Series | FR-D800 SERIES |
|---|---|
| Type | FR-D800 COMPACT INVERTER |
| Minimum Rated Voltage (V) | 200 |
| Min. Permissible Voltage (V) | 170 |
| Maximum Rated Voltage (V) | 240 |
| Max. Permissible Voltage (V) | 264 |
| Current Type | AC |
| Phases | 1 |
| Rated Output Current ND (A) | 0,8 |
| Rated Motor Capacity ND (kW) | 0,1 |
| Frequency Range (Hz) | 0,2 TO 590 HZ |
| Control Method | Adv. magnetic flux vector, PM sensorless vector control, V/F control |
| Motor Type | INDUCTION MOTOR |
| Brake Chopper ED (%) | 0 |
| Integrated EMC Filter | NO |
| Safe Torque Off (STO) | YES |
| Regenerative (4Q) | NO |
| Integrated DC Choke | NO |
| Display | BUILT-IN |
| Display Type | 4 DIGITS LED |
| PLC Function | NO |
| Integrated Digital Inputs | 5 |
| Digital Outputs (Transistor) | 1 |
| Digital Outputs (Relay) | 1 |
| IO Type of Terminal Block | SPRING CLAMP |
| Expandable | NO |
| USB | TYPE C |
| Ethernet Port | 1 |
| Built-In Network | MODBUS RTU, PROFINET, CC-Link IE Field Network Basic, CC-Link IE TSN |
| Protection Class | IP20 |
| CE | COMPLIANT |
|---|
| Width (mm) | 68 |
|---|---|
| Height (mm) | 128 |
| Depth (mm) | 80,5 |
| Weight (kg) | 0,5 |
| Predecessor | 247595 |
|---|
| Selling Status | Standard |
|---|
| Cardboard (g) | 135 |
|---|---|
| Other paper (g) | 0 |
| Aluminum (g) | 0 |
| Steel (g) | 0 |
| Styrofoam (g) | 0 |
| Other plastic (g) | 2,2 |
| Wood (g) | 0 |
| Glass (g) | 0 |
| Others (g) | 0 |
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 3648-18-8, 68-12-2, 693-98-1, 71868-10-5, 7439-92-1, 79-94-7 |
| Dangerous Goods Class | NO |
| Dangerous Goods Identifier | NO |
| RoHS Compliance | COMPLIANT |
| WEEE | B2B |
