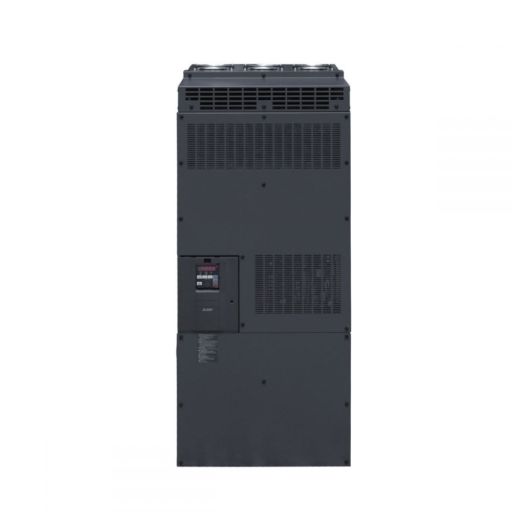

Material number 279637
AC/DC Rectifier; Pn: 560kW; 3x380-500V; int. DC Choke; IP00; 120%60s/150%3s
| Series | FR-CC2 400V SERIES |
|---|---|
| Type | AC/DC RECTIFIER |
| Protection Class | IP00 |
| Depth (mm) | 440 |
|---|---|
| Weight (kg) | 293 |
| Width (mm) | 600 |
| Height (mm) | 1580 |
| CE | COMPLIANT |
|---|---|
| Shipping Approvals | BV,DNV GL,LR,NK |
| EAC | NON-COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 7495 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 789 |
| Wood (g) | 39000 |
| Other paper (g) | 0 |
| REACH Limit Exceeded | NO |
|---|---|
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
