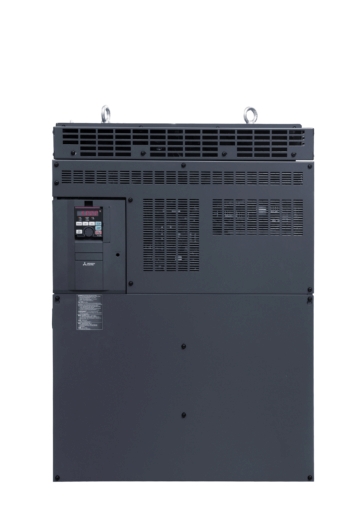

307192 - FR-AF840-05470-60

FA-INVERTER: INVERTER

Series	FR-A/F800 SERIES
Type	BASE UNIT FOR INV A840/F840
Minimum Rated Voltage (V)	380
Min. Permissible Voltage (V)	323
Maximum Rated Voltage (V)	500
Max. Permissible Voltage (V)	550
Current Type	AC
Phases	3
Rated Output Current SLD (A)	547
Rated Output Current LD (A)	481
Rated Output Current ND (A)	432
Rated Output Current HD (A)	361
Rated Motor Capacity SLD (kW)	280
Rated Motor Capacity LD (kW)	250
Rated Motor Capacity ND (kW)	220
Rated Motor Capacity HD (kW)	185
Control Method	VECTOR CONTROL
Motor Type	INDUCTION MOTOR, PM MOTOR
Integrated EMC Filter	YES
Safe Torque Off (STO)	YES
Regenerative (4Q)	NO
Integrated DC Choke	NO
Display	FR-DU08
Display Type	5 DIGITS LED
PLC Function	YES
Program Memory	6K
Program Memory Unit	STEPS
Integrated Digital Inputs	12
Digital Outputs (Transistor)	5
Digital Outputs (Relay)	2
Integrated Analogue Inputs	3
Integrated Analogue Outputs	2
IO Type of Terminal Block	SPRING CLAMP
Expandable	YES
RS-485	2
USB	2
Leakage Current (mA)	35(DELTA) / 2(STAR)
Power Loss SLD (W)	5850
Power Loss LD (W)	5100
Power Loss ND (W)	4550
Power Loss HD (W)	3700
Standby Power Consumption (W)	125
Protection Class	IP00

PRODUCT DIMENSIONS & WEIGHT

Depth (mm)	380
Weight (kg)	166
Width (mm)	680
Height (mm)	1010

CONFORMITY

CE	COMPLIANT
EAC	COMPLIANT
UL/cUL	COMPLIANT
UKCA	COMPLIANT
