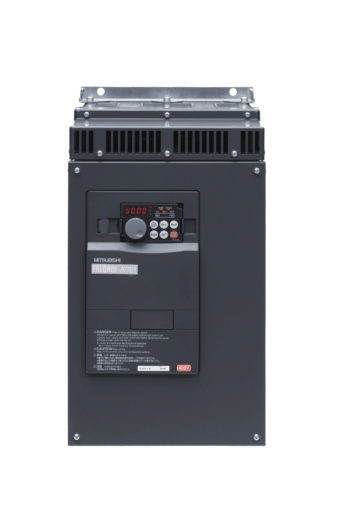

Material number 216905
Inverter; Rated Power: 5,5kW; 3x380-480V; Rated Current: 12A; IP00
| Series | FR-A SERIES |
|---|---|
| Type | FR-A741 INVERTER |
| Minimum Rated Voltage (V) | 380 |
| Min. Permissible Voltage (V) | 323 |
| Maximum Rated Voltage (V) | 480 |
| Max. Permissible Voltage (V) | 528 |
| Current Type | AC |
| Phases | 3 |
| Rated Output Current ND (A) | 12 |
| Rated Motor Capacity ND (kW) | 5,5 |
| Frequency Range (Hz) | 0,2–400 |
| Control Method | VECTOR CONTROL |
| Motor Type | INDUCTION MOTOR |
| Brake Chopper ED (%) | 30 |
| Integrated EMC Filter | YES |
| Safe Torque Off (STO) | NO |
| Regenerative (4Q) | YES |
| Integrated DC Choke | NO |
| Display | FR-DU07 |
| Display Type | 4 DIGITS LED |
| PLC Function | YES |
| Program Memory | 1K |
| Program Memory Unit | STEPS |
| Integrated Digital Inputs | 12 |
| Digital Outputs (Transistor) | 5 |
| Digital Outputs (Relay) | 2 |
| Integrated Analogue Inputs | 3 |
| Integrated Analogue Outputs | 2 |
| IO Type of Terminal Block | SCREW |
| Expandable | YES |
| RS-485 | 2 |
| USB | 1 |
| Built-In Network | MODBUS-RTU |
| Leakage Current (mA) | 1 |
| Power Loss ND (W) | 330 |
| Protection Class | IP00 |
| Depth (mm) | 270 |
|---|---|
| Weight (kg) | 25 |
| Width (mm) | 250 |
| Height (mm) | 470 |
| CE | COMPLIANT |
|---|---|
| EAC | COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 1100 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 20 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 872-50-4, 15571-58-1, 540-97-6, 12626-81-2, 13560-89-9, 25155-23-1, 2451-62-9, 541-02-6, 7439-92-1, 556-67-2 |
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
