Material number 216907

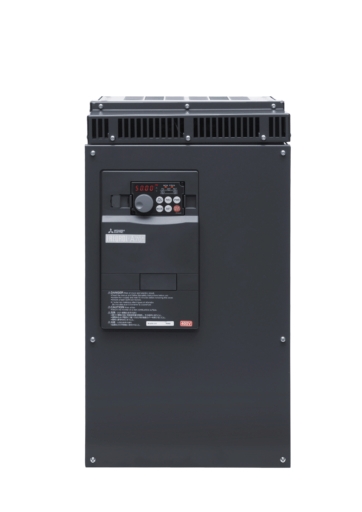

Inverter; Rated Power: 11kW; 3x380-480V; Rated Current: 23A; IP00, The Mitsubishi FR-A741-11K is a high-performance regenerative variable frequency drive (VFD) from the advanced FR-A700 series, designed for applications that require precise motor control and energy recovery. Unlike conventional inverters, this regenerative VFD converts excess braking energy into reusable power, significantly improving overall system efficiency. With a power rating of 11kW, this inverter is ideal for industrial applications such as cranes, elevators, hoists, conveyors, and other high-inertia systems where frequent braking occurs. Its advanced vector control ensures accurate speed and torque control, while reducing energy consumption and operational costs.
Material Type: Standard Material
Logistic Class: B
| Series | FR-A SERIES |
|---|---|
| Type | FR-A741 INVERTER |
| Minimum Rated Voltage (V) | 380 |
| Min. Permissible Voltage (V) | 323 |
| Maximum Rated Voltage (V) | 480 |
| Max. Permissible Voltage (V) | 528 |
| Current Type | AC |
| Phases | 3 |
| Rated Output Current ND (A) | 23 |
| Rated Motor Capacity ND (kW) | 11 |
| Frequency Range (Hz) | 0,2–400 |
| Control Method | VECTOR CONTROL |
| Motor Type | INDUCTION MOTOR |
| Brake Chopper ED (%) | 30 |
| Integrated EMC Filter | YES |
| Safe Torque Off (STO) | NO |
| Regenerative (4Q) | YES |
| Integrated DC Choke | NO |
| Display | FR-DU07 |
| Display Type | 4 DIGITS LED |
| PLC Function | YES |
| Program Memory | 1K |
| Program Memory Unit | STEPS |
| Integrated Digital Inputs | 12 |
| Digital Outputs (Transistor) | 5 |
| Digital Outputs (Relay) | 2 |
| Integrated Analogue Inputs | 3 |
| Integrated Analogue Outputs | 2 |
| IO Type of Terminal Block | SCREW |
| Expandable | YES |
| RS-485 | 2 |
| USB | 1 |
| Built-In Network | MODBUS-RTU |
| Leakage Current (mA) | 1 |
| Power Loss ND (W) | 660 |
| Protection Class | IP00 |
| Depth (mm) | 294 |
|---|---|
| Weight (kg) | 37 |
| Width (mm) | 300 |
| Height (mm) | 600 |
| CE | COMPLIANT |
|---|---|
| EAC | COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 6200 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 50 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| Warranty | 2 Year |
|---|
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 117-81-7, 12626-81-2, 13560-89-9, 15571-58-1, 2451-62-9, 25155-23-1, 540-97-6, 541-02-6, 556-67-2, 7439-92-1, 872-50-4 |
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
