Material number 209736

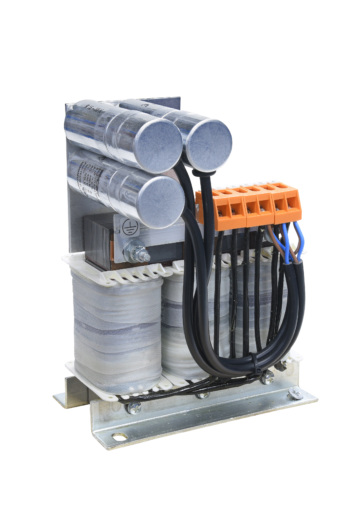

Sinusfilter for 200/230/400V Inverters;max. 8,3A;FT=4-16kHz;(W*H*D) 155*205*95mm
| Type | SINUSFILTER |
|---|---|
| Series | ALL |
| Rated Capacity (kW) | 200V: 1,5, 230V: 1,5, 400V: 3 |
| Rated Current (A) (fa_ger_79) | 8,3 |
| Power Loss (W) | 65 |
| Protection Class | IP00 |
| Depth (mm) | 95 |
|---|---|
| Weight (kg) | 6,9 |
| Width (mm) | 155 |
| Height (mm) | 205 |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| UKCA | NON-COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 10 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 1200 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 0 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| REACH Limit Exceeded | NO |
|---|---|
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
