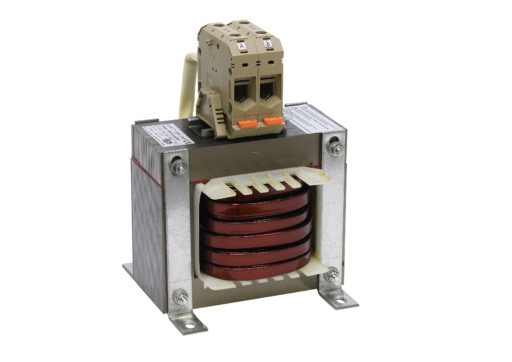

Material number 238355
DC Link choke for 400V Inverter; 45kW; 0,84mH; 82A
| Type | DC LINK CHOKE |
|---|---|
| Applicable Inverter | FR-A741, FR-A800, FR-D700-SC, FR-E800, FR-F800 |
| Rated Voltage (V) | 400 |
| Current Type | DC |
| Inductance (mH) | 0,84 |
| Rated Capacity (kW) | 45 |
| Rated Current (A) (fa_ger_79) | 82 |
| Power Loss (W) | 64,6 |
| Protection Class | IP00 |
| Depth (mm) | 114 |
|---|---|
| Weight (kg) | 11,3 |
| Width (mm) | 150 |
| Height (mm) | 202 |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 924 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 0 |
| Wood (g) | 0 |
| Other paper (g) | 11 |
| REACH Limit Exceeded | NO |
|---|---|
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
