Material number 283577

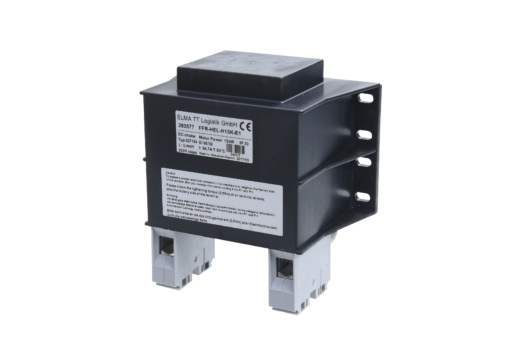

DC Link choke for 200V Inverter; 15kW; 0,4mH; 64,7A
| Type | DC LINK CHOKE |
|---|---|
| Applicable Inverter | FR-A741, FR-E800, FR-F800, FR-A800, FR-D700-SC |
| Rated Voltage (V) | 200 |
| Current Type | DC |
| Inductance (mH) | 0,4 |
| Rated Capacity (kW) | 15 |
| Rated Current (A) (fa_ger_79) | 64,7 |
| Power Loss (W) | 32,5 |
| Protection Class | IP20 |
| Depth (mm) | 156 |
|---|---|
| Weight (kg) | 4 |
| Width (mm) | 133,2 |
| Height (mm) | 85 |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| REACH Limit Exceeded | NO |
|---|---|
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
