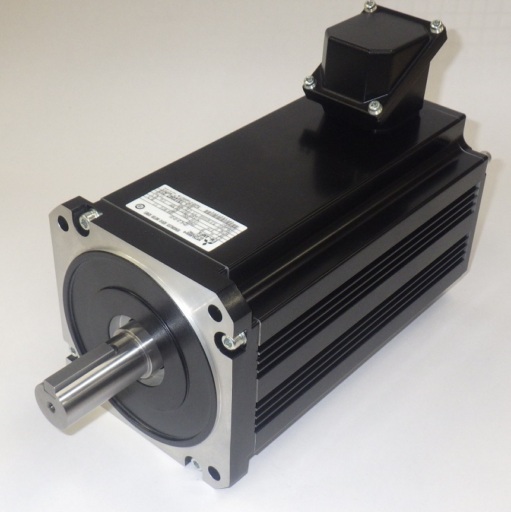

EM-AMFKT 0.75KW 330V 100HZ
Material number 703080
Rated 0.75 kW at 3000 r/min, the EM-AMFKT 0.75KW 330V 100HZ is a 400 V class Mitsubishi Electric EM-A PM motor specified at 330 V and 100 Hz. Applications include machine axes, feeders and turntables that need encoderless positioning. An FR-E800 inverter runs it under PM sensorless vector control, giving speed control and positioning without an encoder. The motor meets efficiency class IE5 for variable-speed motors. The T suffix denotes terminal block wiring, and protection is IP44 indoor type. It has a flange mount (F), keyed shaft (K) and totally enclosed self-cooled frame. Rated torque is 2.39 N·m, peak torque 200 % and maximum speed 4000 r/min. Use it with a 0.75 kW FR-E840 inverter from the 400 V class.
FA-INVERTER: MOTOR
| Series | EM-A SERIES |
|---|---|
| Type | PM MOTOR |
| Rated Capacity (kW) | 0,75 |
| Rated Torque (Nm) | 2,39 |
| Maximum Torque (Nm) | 4,78 |
| Rated Speed (rpm) | 3000 |
| Maximum Speed (rpm) | 4000 |
| Wiring | TERMINAL BLOCK |
| Inertia (kg*cm2) | 5,43 |
| Brake | NO |
| Shaft Type | KEYWAY |
| Protection Class | IP44 |
| Power Supply (V) | 400 |
PRODUCT DIMENSIONS & WEIGHT
| Depth (mm) | 242 |
|---|---|
| Weight (kg) | 6,4 |
| Width (mm) | 110 |
| Height (mm) | 173 |
CONFORMITY
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
PRODUCT PACKAGING
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 750 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 0 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
ENVIRONMENTAL
| Dangerous Goods Class | NO |
|---|---|
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
Related Products
Frequently Asked Questions
It is rated 0.75 kW at 330 V and 100 Hz, with a rated speed of 3000 r/min. It is a 400 V class motor.
Common uses are machine axes, feeders and turntables.
It delivers 2.39 N·m rated torque, 200 % peak torque and a maximum speed of 4000 r/min.
