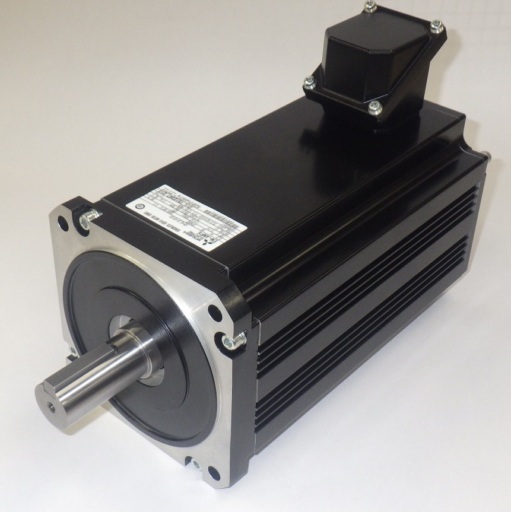

EM-AMFKT 0.1KW 130V 100HZ

EM-AMFKT 0.1KW 130V 100HZ

Material number 703046

Rated 0.1 kW at 3000 r/min, the EM-AMFKT 0.1KW 130V 100HZ is a 200 V class Mitsubishi Electric EM-A PM motor specified at 130 V and 100 Hz. Applications include conveyors, pumps and fans where IE5 efficiency cuts energy use. An FR-E800 inverter runs it under PM sensorless vector control, giving speed control and positioning without an encoder. The motor meets efficiency class IE5 for variable-speed motors. This T version is wired through a terminal block and rated IP44 indoor type. Flange mounting (F), a keyed shaft (K) and totally enclosed self-cooling are standard. It delivers 0.32 N·m rated torque, 200 % peak torque and up to 4000 r/min. It pairs with 200 V class FR-E820 or single-phase FR-E820S inverters of matching 0.1 kW capacity.

FA-INVERTER: MOTOR
Series EM-A SERIES
Type PM MOTOR
Rated Capacity (kW) 0,1
Rated Torque (Nm) 0,32
Maximum Torque (Nm) 0,64
Rated Speed (rpm) 3000
Maximum Speed (rpm) 4000
Wiring TERMINAL BLOCK
Inertia (kg*cm2) 1,51
Brake NO
Shaft Type KEYWAY
Protection Class IP44
Power Supply (V) 200
PRODUCT DIMENSIONS & WEIGHT
Depth (mm) 189
Weight (kg) 2,9
Width (mm) 92
Height (mm) 153
CONFORMITY
CE COMPLIANT
EAC NON-COMPLIANT
PRODUCT PACKAGING
Aluminum (g) 0
Others (g) 0
Styrofoam (g) 0
Cardboard (g) 500
Steel (g) 0
Glass (g) 0
Other plastic (g) 0
Wood (g) 0
Other paper (g) 0
ENVIRONMENTAL
Dangerous Goods Class NO
WEEE B2B
Dangerous Goods Identifier NO

Frequently Asked Questions

It is rated 0.1 kW at 130 V and 100 Hz, with a rated speed of 3000 r/min. It is a 200 V class motor.
Common uses are conveyors, pumps and fans.
No. Driven by an FR-E800 inverter in PM sensorless vector control, it needs no encoder for speed and position control.
