Material number 585170

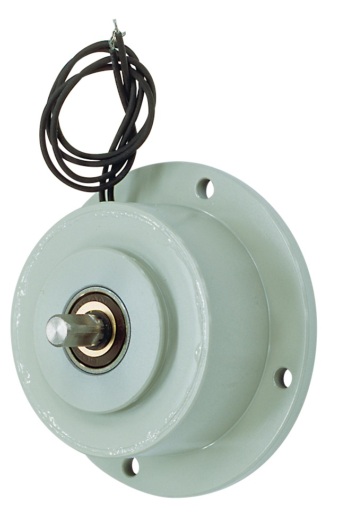

Powder brake; ZKG-YN Series; Rated torque 0,5 Nm; Natural cooling
| Series | ZKG-YN |
|---|---|
| Type | MICRO POWDER BRAKE |
| Rated Torque (Nm) | 0,5 |
| Rated Current (A) (fa_ger_79) | 0,35 |
| Power Consumption (W) | 8,4 |
| Inertia (kg*cm2) | 94 |
| Shaft Type | PROTUDING SHAFT |
| Depth (mm) | 45 |
|---|---|
| Weight (kg) | 0,4 |
| Width (mm) | 70 |
| Height (mm) | 70 |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| UKCA | COMPLIANT |
| REACH Limit Exceeded | NO |
|---|---|
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
