Material number 585158

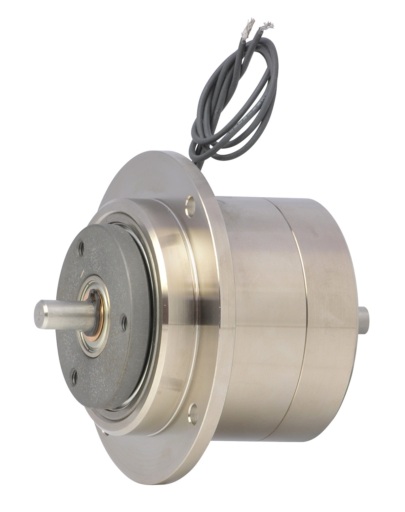

Powder clutch; ZKG-AN Series; Rated torque 1 Nm; Natural cooling
| Series | ZKG-AN |
|---|---|
| Type | MICRO POWDER CLUTCH |
| Rated Torque (Nm) | 0,5 |
| Rated Current (A) (fa_ger_79) | 0,35 |
| Power Consumption (W) | 8,4 |
| Shaft Type | PROTUDING SHAFT |
| Depth (mm) | 77 |
|---|---|
| Weight (kg) | 0,67 |
| Width (mm) | 70 |
| Height (mm) | 70 |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 44,0 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 23,0 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 96-45-7 |
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
