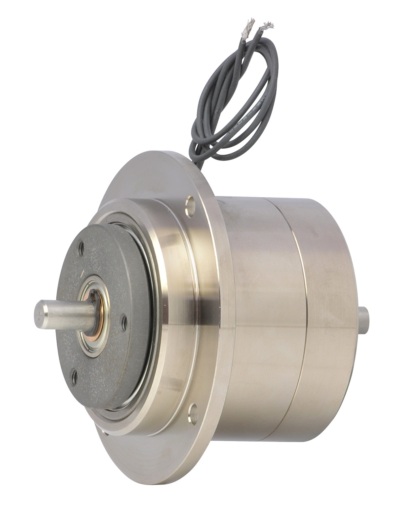

Material number 585161
Powder clutch; ZKG-AN Series; Rated torque 10 Nm; Natural cooling
| Series | ZKG-AN |
|---|---|
| Type | MICRO POWDER CLUTCH |
| Rated Torque (Nm) | 5 |
| Rated Current (A) (fa_ger_79) | 0,8 |
| Power Consumption (W) | 19,2 |
| Shaft Type | PROTUDING SHAFT |
| Depth (mm) | 111 |
|---|---|
| Weight (kg) | 2,3 |
| Width (mm) | 100 |
| Height (mm) | 100 |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| UKCA | COMPLIANT |
| REACH Limit Exceeded | NO |
|---|---|
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
