Material number 585175

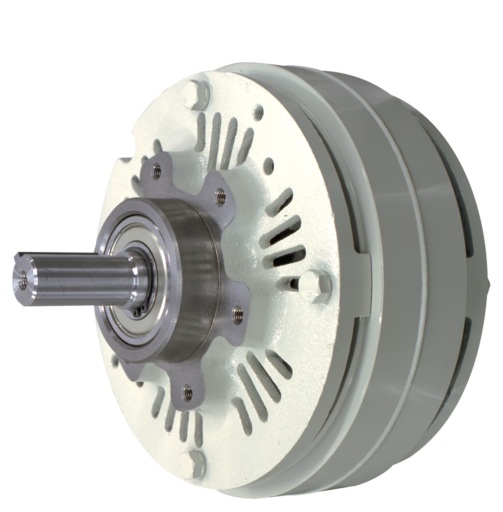

Powder brake; ZKB-XN Series; Rated torque 100 Nm; Natural cooling
| Series | ZKB-XN |
|---|---|
| Type | POWDER BRAKE |
| Rated Torque (Nm) | 100 |
| Rated Current (A) (fa_ger_79) | 2,4 |
| Power Consumption (W) | 57,6 |
| Inertia (kg*cm2) | 350 |
| Shaft Type | PROTUDING SHAFT |
| Depth (mm) | 235 |
|---|---|
| Weight (kg) | 34 |
| Width (mm) | 278 |
| Height (mm) | 320,5 |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 1.482,0 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 41,0 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 96-45-7 |
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
