Material number 585178

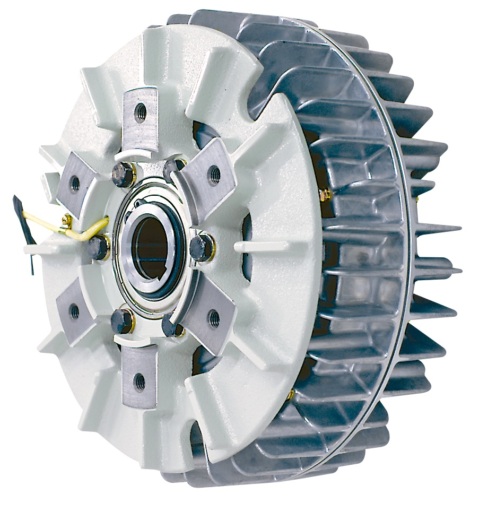

Powder brake; ZA-Y Series; Rated torque 100 Nm; Natural cooling
| Series | ZA-Y1 |
|---|---|
| Type | POWDER BRAKE |
| Rated Torque (Nm) | 100 |
| Rated Current (A) (fa_ger_79) | 1,21 |
| Power Consumption (W) | 28,8 |
| Inertia (kg*cm2) | 660 |
| Shaft Type | THROUGH-SHAFT |
| Depth (mm) | 140 |
|---|---|
| Weight (kg) | 22 |
| Width (mm) | 275 |
| Height (mm) | 275 |
| CE | COMPLIANT |
|---|---|
| EAC | NON-COMPLIANT |
| UKCA | COMPLIANT |
| REACH Limit Exceeded | NO |
|---|---|
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
