Material number 340503

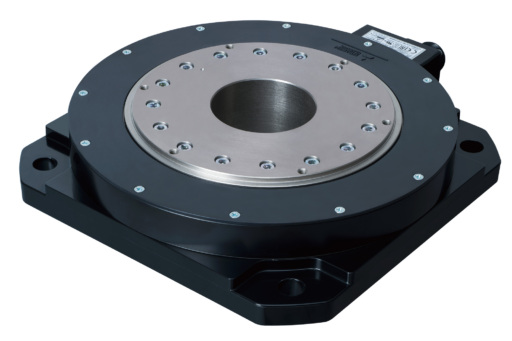

Direct Drive Motor TM Serie, Power 283 W; Torque 9 Nm, max. 27 Nm, Flange
| Series | MELSERVO-J4, MELSERVO-J5 |
|---|---|
| Type | TM-RG2M |
| Rated Capacity (kW) | 0,283 |
| Rated Torque (Nm) | 9 |
| Maximum Torque (Nm) | 27 |
| Current Type | AC |
| Encoder Resolution (p/rev) | 4194304 |
| Rated Speed (rpm) | 300 |
| Maximum Speed (rpm) | 600 |
| Inertia (kg*cm2) | 147 |
| Brake | NO |
| Shaft Type | STRAIGHT SHAFT |
| Protection Class | IP40 |
| Encoder Type | 22-BIT |
| Depth (mm) | 54 |
|---|---|
| Weight (kg) | 8,3 |
| Width (mm) | 230 |
| Height (mm) | 278 |
| CE | COMPLIANT |
|---|---|
| EAC | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 4000 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 40 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| RoHS Compliance | COMPLIANT |
|---|---|
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
