Material number 232901

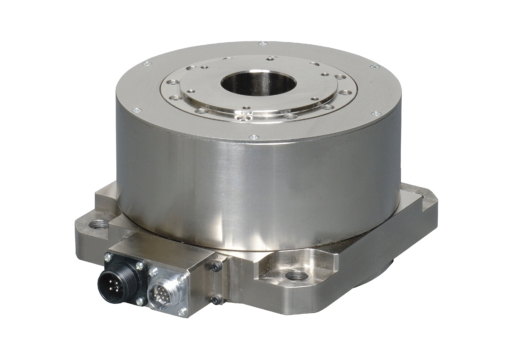

Direct Drive Motor TM Serie, Power 377 W; Torque 18 Nm, Torque 54 Nm
| Series | MELSERVO-J4, MELSERVO-J5 |
|---|---|
| Type | TM-RFM |
| Power Supply (V) | 200 |
| Rated Capacity (kW) | 0,377 |
| Rated Torque (Nm) | 18 |
| Maximum Torque (Nm) | 54 |
| Rated Speed (rpm) | 200 |
| Inertia (kg*cm2) | 149 |
| Brake | NO |
| Shaft Type | STRAIGHT SHAFT |
| Current Type | AC |
| Encoder Resolution (p/rev) | 1048576 |
| Maximum Speed (rpm) | 500 |
| Protection Class | IP42 |
| Encoder Type | 20-BIT |
| Depth (mm) | 109 |
|---|---|
| Weight (kg) | 18 |
| Width (mm) | 180 |
| Height (mm) | 231,9 |
| CE | COMPLIANT |
|---|---|
| EAC | COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 600 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 40 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| REACH Limit Exceeded | NO |
|---|---|
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
