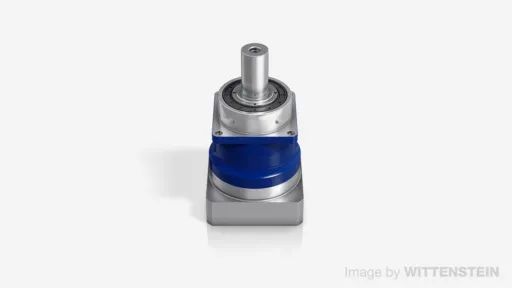

Material number 689309
Gear SP+; Ratio: 3; Backlash<=3; Key shaft; Motor flange: 90mm;Shaft: 19mm
| Gear Ratio | 3 |
|---|---|
| Stage | 1 |
| Maximum Torque (Nm) | 139 |
| Rated Speed (rpm) | 2500 |
| Maximum Speed (rpm) | 5500 |
| Protection Class | IP65 |
| Maximum Backlash | 3 ARCMIN |
| Shaft Type | KEY SHAFT |
| CE | NOT IN SCOPE |
|---|---|
| EAC | NON-COMPLIANT |
| UKCA | NOT IN SCOPE |
| Selling Status | Standard |
|---|
| Cardboard (g) | 740 |
|---|---|
| Other paper (g) | 0 |
| Aluminum (g) | 0 |
| Steel (g) | 0 |
| Styrofoam (g) | 0 |
| Other plastic (g) | 75 |
| Wood (g) | 0 |
| Glass (g) | 0 |
| Others (g) | 0 |
| REACH Limit Exceeded | NO |
|---|---|
| Dangerous Goods Class | NO |
| Dangerous Goods Identifier | NO |
| RoHS Compliance | COMPLIANT |
| WEEE | B2B |
