Material number 252376

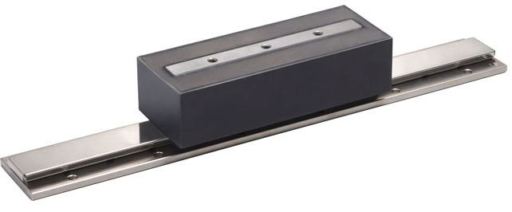

Linearmotor LM-H3 Series (Coil); Rated thrust 360N; max. 900N; max. speed 3m/s
| Rated Current (A) (fa_ger_79) | 5,1 |
|---|---|
| Maximum current (A) | 14,9 |
| Protection Class | IP00 |
| Series | MELSERVO-JET, MELSERVO-J5, MELSERVO-J4 |
| Type | LM-H3 |
| Cooling method | NATURAL |
| Side | PRIMARY |
| Power supply capacity (kVA) | 1,9 |
| Magnetic attraction force (N) | 3300 |
| Rated thrust (N) | 360 |
| Maximum thrust (N) | 900 |
| Maximum Speed (m/s) | 3 |
| Length (mm) | 320 |
| Depth (mm) | 320 |
|---|---|
| Weight (kg) | 3,3 |
| Width (mm) | 65 |
| Height (mm) | 32 |
| CE | COMPLIANT |
|---|---|
| EAC | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 248 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 40 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| REACH Limit Exceeded | NO |
|---|---|
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
