Material number 488152

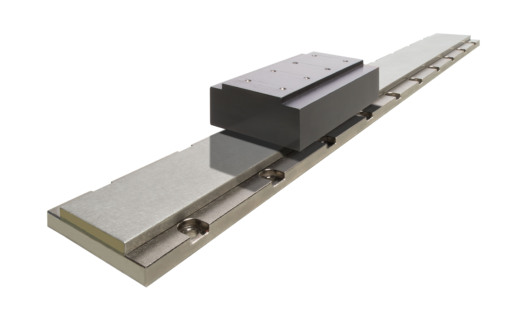

Linear motor; LM-AJ; Coil; Rated thrust 446,8 N, max. 1409,1 N; Natural cooling
| Rated Current (A) (fa_ger_79) | 4,6 |
|---|---|
| Maximum current (A) | 18 |
| Protection Class | IP00 |
| Series | MELSERVO-J5, MELSERVO-J4, MELSERVO-JET |
| Type | LM-AJ |
| Cooling method | NATURAL |
| Side | PRIMARY |
| Power supply capacity (kVA) | 1,3 |
| Magnetic attraction force (N) | 2485,9 |
| Rated thrust (N) | 446,8 |
| Maximum thrust (N) | 1409,1 |
| Maximum Speed (m/s) | 2,5 |
| Length (mm) | 176 |
| Depth (mm) | 176 |
|---|---|
| Weight (kg) | 2,9 |
| Width (mm) | 125 |
| Height (mm) | 23,2 |
| CE | COMPLIANT |
|---|---|
| EAC | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 600 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 150 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| REACH Limit Exceeded | NO |
|---|---|
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
