Material number 582277

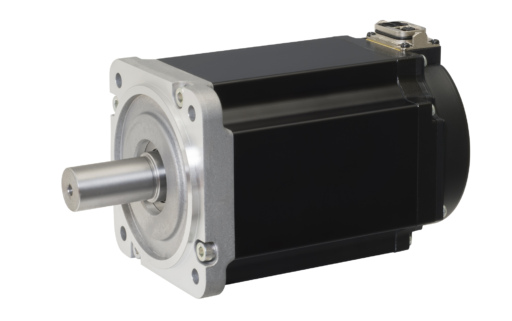

Servomotor; HK-RT Series; Power 1,5 kW; Torque 4,8 Nm, max. 11,9 Nm; Brake
| Series | MELSERVO-J5 |
|---|---|
| Type | HK-RT |
| Power Supply (V) | 200 |
| Rated Capacity (kW) | 1,5 |
| Inertia | ULTRA-LOW INERTIA |
| Rated Torque (Nm) | 4,8 |
| Maximum Torque (Nm) | 11,9 |
| Rated Speed (rpm) | 3000 |
| Inertia (kg*cm2) | 1,25 |
| Brake | YES |
| Shaft Type | STRAIGHT SHAFT |
| Current Type | AC |
| Encoder Resolution (p/rev) | 67108864 |
| Maximum Speed (rpm) | 6700 |
| Protection Class | IP67 |
| Encoder Type | 26-BIT |
| Depth (mm) | 216,3 |
|---|---|
| Weight (kg) | 5,5 |
| Width (mm) | 90 |
| Height (mm) | 106,6 |
| CE | COMPLIANT |
|---|---|
| EAC | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 1 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 760 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 6,9 |
| Wood (g) | 0 |
| Other paper (g) | 0,5 |
| RoHS Compliance | COMPLIANT |
|---|---|
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
