Material number 573548

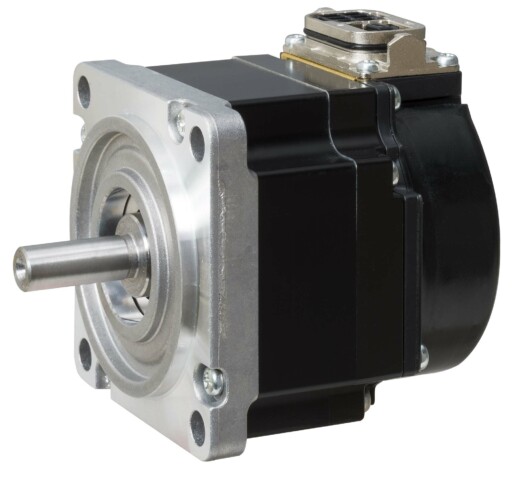

Servomotor; HK-KT Series; Power 200 W; Torque 0,64 Nm; Flat type; Safety
| Series | MELSERVO-J5 |
|---|---|
| Type | HK-KT |
| Power Supply (V) | 200 |
| Rated Capacity (kW) | 0,2 |
| Inertia | LOW INERTIA |
| Rated Torque (Nm) | 0,64 |
| Maximum Torque (Nm) | 1,9 |
| Rated Speed (rpm) | 3000 |
| Inertia (kg*cm2) | 0,419 |
| Brake | NO |
| Shaft Type | STRAIGHT SHAFT |
| Current Type | AC |
| Encoder Resolution (p/rev) | 67108864 |
| Maximum Speed (rpm) | 6700 |
| Protection Class | IP67 |
| Encoder Type | 26-BIT |
| Depth (mm) | 95,5 |
|---|---|
| Weight (kg) | 1,2 |
| Width (mm) | 80 |
| Height (mm) | 96,6 |
| CE | COMPLIANT |
|---|---|
| EAC | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 300 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 21 |
| Wood (g) | 0 |
| Other paper (g) | 36 |
| RoHS Compliance | COMPLIANT |
|---|---|
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
