    481668-HK-KT1M3WK

    481668 - HK-KT1M3WK

    Material number 481668

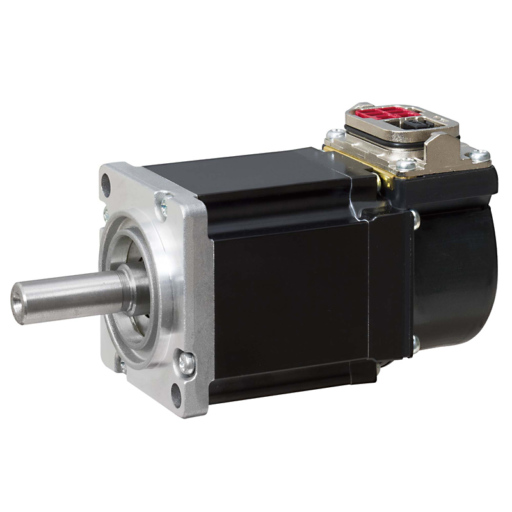

    Servomotor; HK-KT Series; Power 150 W; Torque 0,48 Nm, max. 1,7 Nm; Keyway

    Request for Quote Add to List
    FA-SERVO-MOTION: SERVO MOTOR
    Series MELSERVO-J5
    Type HK-KT
    Power Supply (V) 200
    Rated Capacity (kW) 0,15
    Inertia LOW INERTIA
    Rated Torque (Nm) 0,48
    Maximum Torque (Nm) 1,7
    Rated Speed (rpm) 3000
    Inertia (kg*cm2) 0,0977
    Brake NO
    Shaft Type KEYWAY
    Current Type AC
    Encoder Resolution (p/rev) 67108864
    Maximum Speed (rpm) 6700
    Protection Class IP67
    Encoder Type 26-BIT
    PRODUCT DIMENSIONS & WEIGHT
    Depth (mm) 105,5
    Weight (kg) 0,47
    Width (mm) 40
    Height (mm) 56,8
    CONFORMITY
    CE COMPLIANT
    EAC COMPLIANT
    UKCA COMPLIANT
    PRODUCT PACKAGING
    Aluminum (g) 0
    Others (g) 0
    Styrofoam (g) 0
    Cardboard (g) 60
    Steel (g) 0
    Glass (g) 0
    Other plastic (g) 6
    Wood (g) 0
    Other paper (g) 36
    ENVIRONMENTAL
    REACH Limit Exceeded NO
    RoHS Compliance COMPLIANT
    Dangerous Goods Class NO
    WEEE B2B
    Dangerous Goods Identifier NO
