Material number 735471

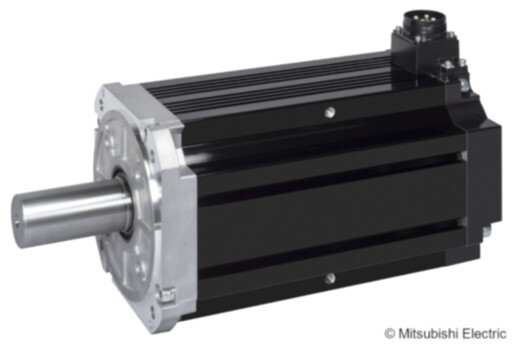

Servomotor; HK-JT Series; Power 22 kW; Torque 140,0 Nm; Oilseal
| Series | MELSERVO-J5 |
|---|---|
| Type | HK-JT |
| Power Supply (V) | 400 |
| Rated Capacity (kW) | 22 |
| Inertia | LOW INERTIA |
| Rated Torque (Nm) | 140 |
| Maximum Torque (Nm) | 420 |
| Rated Speed (rpm) | 1500 |
| Inertia (kg*cm2) | 489 |
| Brake | NO |
| Shaft Type | STRAIGHT SHAFT |
| Current Type | AC |
| Encoder Resolution (p/rev) | 67108864 |
| Maximum Speed (rpm) | 3000 |
| Protection Class | IP67 |
| Encoder Type | 26-BIT |
| Depth (mm) | 616 |
|---|---|
| Weight (kg) | 120 |
| Width (mm) | 250 |
| Height (mm) | 345 |
| CE | COMPLIANT |
|---|
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 1 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 9500 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 49,3 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| RoHS Compliance | COMPLIANT |
|---|---|
| Dangerous Goods Class | NO |
