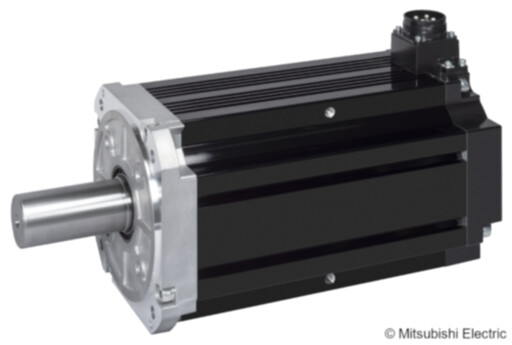

Material number 735472
Servomotor; HK-JT Series; Power 11 kW; Torque 70,0 Nm; Brake; Oilseal
| Series | MELSERVO-J5 |
|---|---|
| Type | HK-JT |
| Power Supply (V) | 400 |
| Rated Capacity (kW) | 11 |
| Inertia | LOW INERTIA |
| Rated Torque (Nm) | 70 |
| Maximum Torque (Nm) | 210 |
| Rated Speed (rpm) | 1500 |
| Inertia (kg*cm2) | 240 |
| Brake | YES |
| Shaft Type | STRAIGHT SHAFT |
| Current Type | AC |
| Encoder Resolution (p/rev) | 67108864 |
| Maximum Speed (rpm) | 3000 |
| Protection Class | IP67 |
| Encoder Type | 26-BIT |
| Depth (mm) | 523,5 |
|---|---|
| Weight (kg) | 74 |
| Width (mm) | 235 |
| Height (mm) | 289,3 |
| CE | COMPLIANT |
|---|
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 1 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 7000 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 52,2 |
| Wood (g) | 0 |
| Other paper (g) | 0 |
| RoHS Compliance | COMPLIANT |
|---|---|
| Dangerous Goods Class | NO |
