Material number 261438

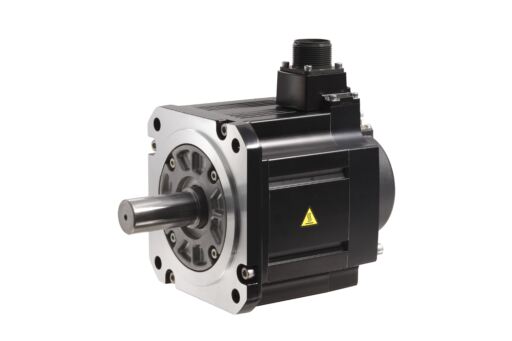

Servomotor HG Series, Power 500 W; Torque 2.4 Nm, Max. Torque 7.2 Nm, Brake
| Series | MELSERVO-J4 |
|---|---|
| Type | HG-SR |
| Power Supply (V) | 400 |
| Rated Capacity (kW) | 0,5 |
| Inertia | MEDIUM INERTIA |
| Rated Torque (Nm) | 2,4 |
| Maximum Torque (Nm) | 7,2 |
| Rated Speed (rpm) | 2000 |
| Inertia (kg*cm2) | 9,48 |
| Brake | YES |
| Shaft Type | STRAIGHT SHAFT |
| Current Type | AC |
| Encoder Resolution (p/rev) | 4194304 |
| Maximum Speed (rpm) | 3000 |
| Protection Class | IP67 |
| Encoder Type | 22-BIT |
| Depth (mm) | 208 |
|---|---|
| Weight (kg) | 6,7 |
| Width (mm) | 130 |
| Height (mm) | 177,5 |
| CE | COMPLIANT |
|---|---|
| EAC | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 530 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 24 |
| Wood (g) | 0 |
| Other paper (g) | 35 |
| REACH Limit Exceeded | NO |
|---|---|
| REACH Substance CAS Number | 108-78-1, 540-97-6, 541-02-6, 7439-92-1 |
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
