    492303-HG-SNS52JK

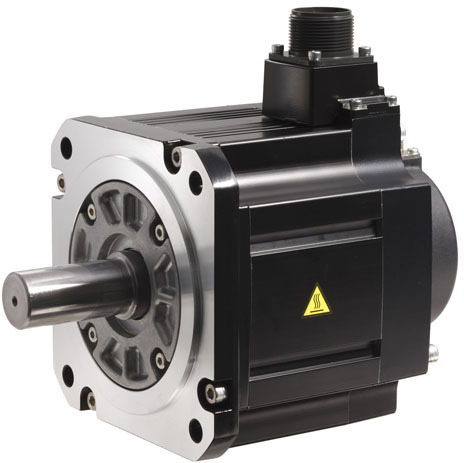

    492303 - HG-SNS52JK

    Material number 492303

    Servo motor; HG Series; Power 500 W; Torque 2,4 Nm, max. 7,2 Nm; Oilseal; Keyway

    Request for Quote Add to List
    FA-SERVO-MOTION: SERVO MOTOR
    Series MELSERVO-JET
    Type HG-SNS
    Power Supply (V) 200
    Rated Capacity (kW) 0,5
    Inertia MEDIUM INERTIA
    Rated Torque (Nm) 2,39
    Maximum Torque (Nm) 7,16
    Rated Speed (rpm) 2000
    Inertia (kg*cm2) 7,26
    Brake NO
    Shaft Type KEYWAY
    Current Type AC
    Encoder Resolution (p/rev) 4194304
    Maximum Speed (rpm) 3000
    Protection Class IP67
    Encoder Type 22-BIT
    PRODUCT DIMENSIONS & WEIGHT
    Depth (mm) 173,5
    Weight (kg) 4,8
    Width (mm) 130
    Height (mm) 177,5
    CONFORMITY
    CE COMPLIANT
    EAC COMPLIANT
    UKCA COMPLIANT
    PRODUCT PACKAGING
    Aluminum (g) 0
    Others (g) 0
    Styrofoam (g) 0
    Cardboard (g) 530
    Steel (g) 0
    Glass (g) 0
    Other plastic (g) 27
    Wood (g) 0
    Other paper (g) 35
    ENVIRONMENTAL
    REACH Limit Exceeded YES
    REACH Substance CAS Number 540-97-6, 7439-92-1
    RoHS Compliance COMPLIANT
    Dangerous Goods Class NO
    WEEE B2B
    Dangerous Goods Identifier NO
