Material number 689577

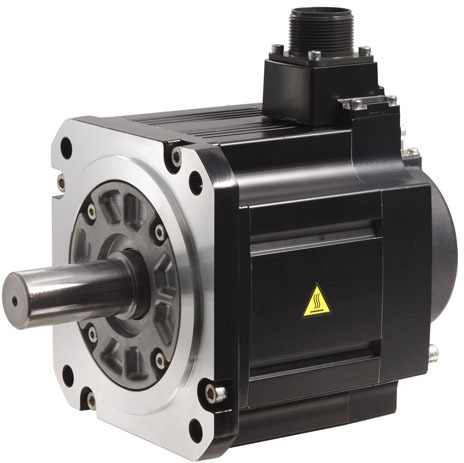

Servo motor; HG Series; Power 1 kW; Torque 4,8 Nm, max. 14,3 Nm; Keyway
| Series | MELSERVO-JET |
|---|---|
| Type | HG-SNS |
| Power Supply (V) | 200 |
| Rated Capacity (kW) | 1 |
| Inertia | MEDIUM INERTIA |
| Rated Torque (Nm) | 4,77 |
| Maximum Torque (Nm) | 14,3 |
| Rated Speed (rpm) | 2000 |
| Inertia (kg*cm2) | 11,6 |
| Brake | NO |
| Shaft Type | KEYWAY |
| Current Type | AC |
| Encoder Resolution (p/rev) | 4194304 |
| Maximum Speed (rpm) | 3000 |
| Protection Class | IP67 |
| Encoder Type | 22-BIT |
| Depth (mm) | 187,5 |
|---|---|
| Weight (kg) | 6,2 |
| Width (mm) | 130 |
| Height (mm) | 177,5 |
| CE | COMPLIANT |
|---|---|
| EAC | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 530 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 7 |
| Wood (g) | 0 |
| Other paper (g) | 35 |
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 540-97-6, 7439-92-1 |
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
