Material number 262904

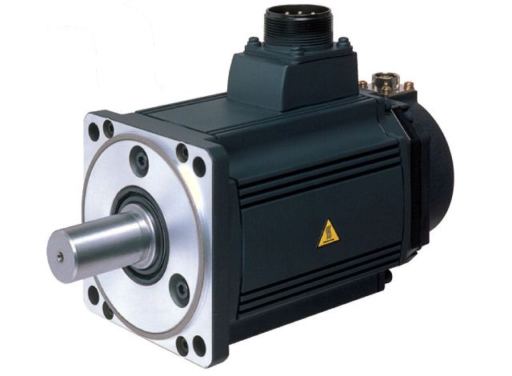

Servomotor HG Series, Power 3.5 kW; Torque 11.1 Nm, Max. 27.9 Nm, Brake
| Series | MELSERVO-J4 |
|---|---|
| Type | HG-RR |
| Power Supply (V) | 200 |
| Rated Capacity (kW) | 3,5 |
| Inertia | ULTRA-LOW INERTIA |
| Rated Torque (Nm) | 11,1 |
| Maximum Torque (Nm) | 27,9 |
| Rated Speed (rpm) | 3000 |
| Inertia (kg*cm2) | 11,8 |
| Brake | YES |
| Shaft Type | STRAIGHT SHAFT |
| Current Type | AC |
| Encoder Resolution (p/rev) | 4194304 |
| Maximum Speed (rpm) | 4500 |
| Protection Class | IP65 |
| Encoder Type | 22-BIT |
| Depth (mm) | 315 |
|---|---|
| Weight (kg) | 15 |
| Width (mm) | 130 |
| Height (mm) | 182,4 |
| CE | COMPLIANT |
|---|---|
| EAC | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 800 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 25 |
| Wood (g) | 0 |
| Other paper (g) | 35 |
| REACH Limit Exceeded | YES |
|---|---|
| REACH Substance CAS Number | 127-19-5 |
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
