Material number 262903

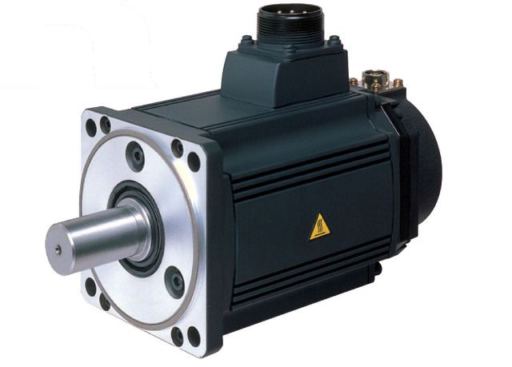

Servomotor HG Series, Power 2 kW; Torque 6.4 Nm, Max. 15.9 Nm, Brake
| Series | MELSERVO-J4 |
|---|---|
| Type | HG-RR |
| Power Supply (V) | 200 |
| Rated Capacity (kW) | 2 |
| Inertia | ULTRA-LOW INERTIA |
| Rated Torque (Nm) | 6,4 |
| Maximum Torque (Nm) | 15,9 |
| Rated Speed (rpm) | 3000 |
| Inertia (kg*cm2) | 2,65 |
| Brake | YES |
| Shaft Type | STRAIGHT SHAFT |
| Current Type | AC |
| Encoder Resolution (p/rev) | 4194304 |
| Maximum Speed (rpm) | 4500 |
| Protection Class | IP65 |
| Encoder Type | 22-BIT |
| Depth (mm) | 278 |
|---|---|
| Weight (kg) | 8,3 |
| Width (mm) | 100 |
| Height (mm) | 144,8 |
| CE | COMPLIANT |
|---|---|
| EAC | COMPLIANT |
| UL/cUL | COMPLIANT |
| UKCA | COMPLIANT |
| Aluminum (g) | 0 |
|---|---|
| Others (g) | 0 |
| Styrofoam (g) | 0 |
| Cardboard (g) | 1200 |
| Steel (g) | 0 |
| Glass (g) | 0 |
| Other plastic (g) | 24 |
| Wood (g) | 0 |
| Other paper (g) | 35 |
| REACH Limit Exceeded | NO |
|---|---|
| RoHS Compliance | COMPLIANT |
| Dangerous Goods Class | NO |
| WEEE | B2B |
| Dangerous Goods Identifier | NO |
