    262898-HG-RR203

    262898 - HG-RR203

    Material number 262898

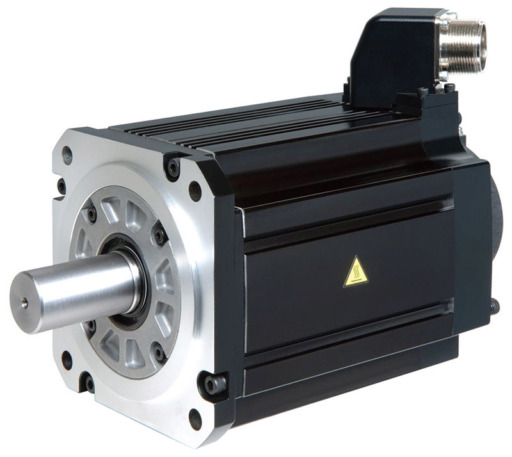

    Servomotor HG Series, Power 2 kW; Torque 6.4 Nm, Max. Torque 15.9 Nm

    Request for Quote Add to List
    FA-SERVO-MOTION: SERVO MOTOR
    Series MELSERVO-J4
    Type HG-RR
    Power Supply (V) 200
    Rated Capacity (kW) 2
    Inertia ULTRA-LOW INERTIA
    Rated Torque (Nm) 6,4
    Maximum Torque (Nm) 15,9
    Rated Speed (rpm) 3000
    Inertia (kg*cm2) 2,3
    Brake NO
    Shaft Type STRAIGHT SHAFT
    Current Type AC
    Encoder Resolution (p/rev) 4194304
    Maximum Speed (rpm) 4500
    Protection Class IP65
    Encoder Type 22-BIT
    PRODUCT DIMENSIONS & WEIGHT
    Depth (mm) 240,5
    Weight (kg) 6,2
    Width (mm) 100
    Height (mm) 144,8
    CONFORMITY
    CE COMPLIANT
    EAC COMPLIANT
    UL/cUL COMPLIANT
    UKCA COMPLIANT
    PRODUCT PACKAGING
    Aluminum (g) 0
    Others (g) 1
    Styrofoam (g) 0
    Cardboard (g) 1200
    Steel (g) 0
    Glass (g) 0
    Other plastic (g) 6,7
    Wood (g) 0
    Other paper (g) 0
    ENVIRONMENTAL
    REACH Limit Exceeded NO
    RoHS Compliance COMPLIANT
    Dangerous Goods Class NO
    WEEE B2B
    Dangerous Goods Identifier NO
